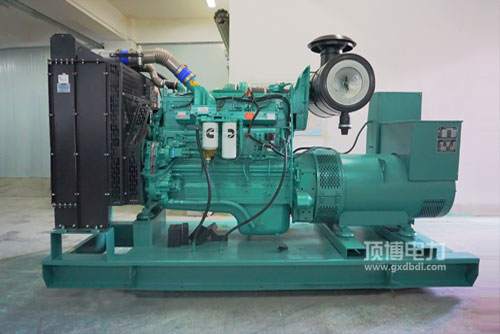

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用发起机气油金钱性好: 先进典型的气油调控软件，才有的STC、ESTC 等级调控软件，专项 制作的活赛顶面烧室，髙压喷洒于气油，能够多方面雾化吸入，烧能够多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用热车机瞬态耐热性优异的: 无极限的热车机整体化定制，积极配合康明斯特殊的EFC系统的，控制的精密性强，响应的时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升热效率高: 纵向设计制作紧凑型.外观简约时尚摆放合理可行，工作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50满足需要国家非的道路最后价段及亚洲Tier2. Tier 3排出法律规定规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可知性好， 打火机正常运行及检修养护等便利店，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率的范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯发电量用热车机的优势：体积大概小， 压解比低， 格珊环境采暖器，最易起动，手机移动车载式电压的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机技术参数	经常使用热效率(kW)Prime Power	备用电源电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
